Item# Hi-4mphecdo

Hanna Hi98494
Portable Multiparameter pH/EC/opdo® Meter with Bluetooth®

Functional and accurate, the Hanna Hi98494 is capable of testing 13 different water quality parameters using pH, EC, and optical DO sensors. Transfer data to a smart device for review or sharing with the integrated Bluetooth® connection and Hanna Lab App.

2 year manufacturer warranty

Waterproof ( meter rated IP67, probe rated IP68)
Automatic interval logging of up to 45,000 samples or log-on-demand
Perfect for environmental and industrial professionals.

Measurements & Logging

Measure up to 13 parameters. Don't lose important data with automatic interval logging of up to 45,000 samples or choose to log-on-demand to store measurement data for key points.

The meter operates on a built-in lithium-ion battery and will automatically switch to AA alkaline batteries for at least 200 hours of testing

GLP Data

Dual Power Source

For better traceability, calibration information is recorded along with a time and date stamp and stored with logged data.

Quick-Calibration

Quick Calibration provides a speedy, single point calibration for pH, conductivity, and dissolved oxygen. Standard calibration options are also available.

Built to be Durable

Designed to withstand the knocks, drops, and spills of real life, the IP67 body ensures top performance in any environment. These meters are protected against dust and water intrusion from any direction.

A Quick Connect DIN connector makes attaching and removing the probe simple and easy. The rubber coating protects the cable and provides a water-tight seal without twisting.

Data Transfer & Charging

Quick Connect Probe

Digital Probe

The USB Type-C port provides for easy data transfer to memory stick, PC, or other device and is used to charge internal lithium-ion battery.

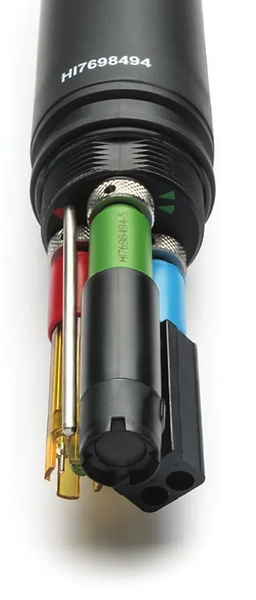

Digital probe with built-in temperature sensor and three ports for pH (ORP), EC and optical DO sensors. Once connected, the meter aautomatically recognize the sensors.

Multiparameter Probe and Sensors

Sensor replacement is quick and easy with field replaceable, screw type connectors and are color-coded for easy identification.

Hi7698194-0 (pH only)
Hi7698194-1 (pH/ORP)

pH/ORP Sensor

EC sensor

Hi7698194-3

Optical DO Sensor

Hi7698494-5

* The optical dissolved oxygen sensor uses a smart cap that has an RFID tag that keeps track of the age of the cap and alerts you when it should be replaced.

Connect in the Field

Sensor replacement is quick and easy with field replaceable, screw type connectors and are color-coded for easy identification.

Group your data by time or notation. Email it for storage or share it with friends or colleagues.

Good Laboratory Practices (GLP)

Sort & Share

Comprehensive GLP data can be reviewed for all parameters when the logged data is downloaded to your smart device.

Select the measurement units to be displayed on your smart device. For trend analysis, take a look at the graph of your logged data.

Measurement & Graphing

Features

Specification Detail
sku Hi98494-web

pH Range 0.00 to 14.00 pH

pH Resolution 0.01 pH

pH Accuracy (@25°C/77°F) ± 0.02 pH

pH Calibration Automatic at 1, 2 or 3 points with automatic recognition of 5 standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or 1 custom buffer

mv Range ± 600.0 mV

mv Resolution 0.1 mV

mv Accuracy ± 0.5 mV

ORP Range ± 2000.0 mV

ORP Resolution 0.1 mV

ORP Accuracy (@25°C/77°F) ± 1.0 mV

ORP Calibration automatic at one custom point (relative mV)

-5.00 to 55.00 °C,

Temperature Range 23.00 to 131.00 °F,
268.15 to 328.15 K

0.01 °C,

Temperature Resolution 0.01 °F,
0.01 K

± 0.15 °C,

Temperature Accuracy ± 0.27 °F,

(@25°C/77°F) ±0.15 K

Temperature Calibration automatic at one custom point

EC Range 0 to 200 mS/cm (absolute EC up to 400 mS/cm)

EC Resolution Manual: 1 µS/cm,

.001 mS/cm,

00.01 mS/cm,

0.1 mS/cm,

1 mS/cM Automatic: 1 µS/cm from 0 to 9999 µS/cm,
0.01 mS/cm from 10.00 to 99.99 mS/cm,
0.1 mS/cm from 100.0 to 400.0 mS/cM Automatic (mS/cm): 0.001 mS/cm - from 0.000 to 9.999

EC Accuracy (@25°C/77°F) ±1 % of reading or ±1 µS/cm whichever is greater

EC Calibration automatic single point,
with six standard solutions (84 µS/cm,
1413 µS/cm,
5.00 mS/cm,
12.88 mS/cm,
80.0 mS/cm,
111.8 mS/cm) or custom point

TDS Range 0 to 400000 ppm (mg/L)

TDS Resolution Manual: 1 ppm (mg/L),
0.001 ppt (g/L),
0.01 ppt (g/L),
0.1 ppt (g/L),
1 ppt (g/L)Automatic: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L),
0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L),
0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L),

TDS Accuracy (@25°C/77°F) ±1 % of reading or ±1 ppm (mg/L) whichever is greater

TDS Calibration based on conductivity or salinity calibration

DO Range 0.0 to 500.0 %,
0.00 to 50.00 ppm (mg/L)

DO Resolution 0.1 %,
0.01 ppm (mg/L)

DO Accuracy (@25°C/77°F) 0.0 to 300.0 %: ± 1.5 % of reading or ± 1.0 % whichever is greater,
300.0 to 500.0 %: ± 3 % of reading0.00 to 30.00 ppm (mg/L): ± 1.5 % of reading or ±0.10 ppm (mg/L)whichever is greater,
30.00 ppm (mg/L) to 50.00 ppm (mg/L): ± 3 % of reading

DO Calibration automatic one or two points at 0 and 100% or one custom point

Resistivity Resolution Depending on resistivity reading

Resistivity Accuracy Based on conductivity or salinity calibration

(@25°C/77°F)

Salinity Range 0.00 to 70.00 PSU

Salinity Resolution 0.01 PSU

Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater

Salinity Calibration based on conductivity calibration

Connectivity USB to PC with HI9298194 Hanna software installed

GLP Yes

Power Supply 1.5V AA batteries (4)

Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight)

Environment 0 to 50°C (32 to 122°F),
RH 100% (IP67)

Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.)

Weight 400 g (14.2 oz.)

Order Information Each HI98494 is delivered in a rugged carrying case and is supplied with: HI7698494 Multi-sensor probe,
HI7698194-1 pH/ORP sensor,
HI7698194-3 EC/TDS/Resistivity/Salinity sensor,
HI7698494-5 Optical DO sensor,
HI764113-1 DO Smart Cap

Warranty 2 years

Recommended Probe HI7698494 multiparameter probe,
HI7698194-1 pH sensor,
HI7698194-1 pH/ORP sensor,
HI7698194-3 EC sensor,
HI7698494-5 optical DO sensor

Item# Hi-4mphecdo

Hanna Hi98494 Portable Multiparameter pH/EC/opdo® Meter with Bluetooth®

Functional and accurate, the Hanna Hi98494 is capable of testing 13 different water quality parameters using pH, EC, and optical DO sensors. Transfer data to a smart device for review or sharing with the integrated Bluetooth® connection and Hanna Lab App. 2 year manufacturer warranty

Measurements & Logging

Measure up to 13 parameters. Don't lose important data with automatic interval logging of up to 45,000 samples or choose to log-on-demand to store measurement data for key points.

The meter operates on a built-in lithium-ion battery and will automatically switch to AA alkaline batteries for at least 200 hours of testing

GLP Data

Dual Power Source

For better traceability, calibration information is recorded along with a time and date stamp and stored with logged data.

Quick-Calibration

Quick Calibration provides a speedy, single point calibration for pH, conductivity, and dissolved oxygen. Standard calibration options are also available.

Built to be Durable

Designed to withstand the knocks, drops, and spills of real life, the IP67 body ensures top performance in any environment. These meters are protected against dust and water intrusion from any direction.

A Quick Connect DIN connector makes attaching and removing the probe simple and easy. The rubber coating protects the cable and provides a water-tight seal without twisting.

Data Transfer & Charging

Quick Connect Probe

Digital Probe

The USB Type-C port provides for easy data transfer to memory stick, PC, or other device and is used to charge internal lithium-ion battery.

Digital probe with built-in temperature sensor and three ports for pH (ORP), EC and optical DO sensors. Once connected, the meter aautomatically recognize the sensors.

Multiparameter Probe and Sensors

Sensor replacement is quick and easy with field replaceable, screw type connectors and are color-coded for easy identification.

Hi7698194-0 (pH only) Hi7698194-1 (pH/ORP)

pH/ORP Sensor

EC sensor

Hi7698194-3

Optical DO Sensor

Hi7698494-5

* The optical dissolved oxygen sensor uses a smart cap that has an RFID tag that keeps track of the age of the cap and alerts you when it should be replaced.

Connect in the Field

Sensor replacement is quick and easy with field replaceable, screw type connectors and are color-coded for easy identification.

Group your data by time or notation. Email it for storage or share it with friends or colleagues.

Good Laboratory Practices (GLP)

Sort & Share

Comprehensive GLP data can be reviewed for all parameters when the logged data is downloaded to your smart device.

Select the measurement units to be displayed on your smart device. For trend analysis, take a look at the graph of your logged data.

Measurement & Graphing

Features

Included

Double Junction pH/ORP Sensor

EC sensor

Optical DO Sensor

Galvanic DO Sensor

Durable Carrying Case

Optional

Flow Cell

Item# hi-Flowcell
